RetainAI Architecture

Architecture views

RetainAI uses multiple views because no single image can explain the product, analytical lifecycle, runtime topology, delivery model, and request sequence without becoming unreadable.

View	Purpose	Status
Decision Intelligence	Product and analytical capabilities	Current foundation + planned evolution
Multicloud runtime	GCP dashboard and AWS backend operating in v0.4	Deployed
Data, model, evidence, and advisor	Analytical lifecycle and governed RAG evolution	Current + planned
Delivery architecture	Application delivery versus Terraform infrastructure delivery	Current + next milestone
Runtime sequence	Authentication, quota, prediction, explanation, and optional AI flow	Current + disabled branch

Visual status convention

solid border and connector
  implemented or deployed

dashed border and connector
  planned, disabled, or post-v0.4

Decision-intelligence architecture

Current deployed multicloud runtime

Data, model, evidence, and advisor evolution

Application and infrastructure delivery

Runtime request sequence

This document is the canonical architecture guide for RetainAI.

It separates:

product architecture
current deployed runtime
analytical and evidence lifecycle
future RAG and advisor evolution
application delivery
infrastructure delivery
runtime request sequence

Table of contents

• Architecture views
• Status legend
• Decision-intelligence architecture
• Current deployed multicloud runtime
• Current request flow
• Analytical foundation
• Data, model, evidence, and RAG evolution
• Delivery architecture
• Runtime sequence
• Current and planned capabilities
• Security boundaries
• Architecture decisions
• Internationalization boundary
• Related guides

Architecture views

RetainAI uses several architecture views because no single diagram can communicate the product, analytics, runtime, data lifecycle, and delivery model without becoming unreadable.

View	Purpose	README placement
Decision Intelligence	Explain the whole product and analytical layers	Root README and this guide
Multicloud runtime v0.4	Show what is deployed and operating now	Root README and this guide
Data/model/evidence pipeline	Show current analytical foundation and future RAG path	This guide only
Delivery architecture	Separate application releases from infrastructure changes	This guide only
Runtime sequence	Show request, auth, quota, prediction, explanation, and optional AI flow	This guide only

The root README intentionally contains only the first two visualizations. The remaining views belong here to avoid turning the repository landing page into an architecture report.

Status legend

All diagrams use the following semantic distinction:

solid line / solid border
  current implementation or deployed v0.4 runtime

dashed line / dashed border
  planned evolution, disabled capability, or post-v0.4 component

This prevents future RAG, monitoring, and provider capabilities from being misread as already deployed.

Decision-intelligence architecture

RetainAI is not only a multicloud application. Its product foundation combines:

data preparation
exploratory analysis
classification
survival analysis
SHAP explainability
MLflow experiment tracking
model and explanation artifacts
FastAPI services
Streamlit decision support
future monitored and AI-assisted guidance

Editable source

Product layers

Layer	Responsibility
Data and analytical foundation	Prepare, validate, profile, and version inputs
Predictive intelligence	Classification and survival outputs
Explainable intelligence	SHAP, feature drivers, model cards, and evidence
Decision experience	API contracts, dashboard, reports, and review
MLOps and governance	Experiments, artifacts, monitoring, and release controls
Advisor layer	Optional evidence-grounded guidance through provider adapters

Current deployed multicloud runtime

The following architecture is deployed for v0.4.

Editable source

GCP dashboard plane

domain:
  retainai.hubertronald.dev

runtime:
  Google Cloud Run
  retainai-dashboard
  us-east4

image registry:
  Google Artifact Registry

secret:
  GCP Secret Manager

scaling:
  minimum instances = 0
  service maximum = 1
  revision maximum = 1

AWS backend plane

domain:
  api.retainai.hubertronald.dev

entry:
  API Gateway HTTP API

compute:
  AWS Lambda container
  us-east-1

image registry:
  Amazon ECR

quota:
  DynamoDB

logs:
  CloudWatch

certificate:
  AWS Certificate Manager

Infrastructure plane

infra/aws-terraform
infra/gcp-terraform

Terraform is the active infrastructure-as-code implementation.

Routine dashboard image releases do not apply Terraform.

Current request flow

1. The user opens retainai.hubertronald.dev.
2. Cloud Run serves the Streamlit application.
3. Server-side dashboard code reads the backend bearer token from Secret Manager.
4. Cloud Run calls api.retainai.hubertronald.dev.
5. API Gateway invokes the Lambda container.
6. Lambda validates the bearer token.
7. Lambda evaluates the DynamoDB quota for protected endpoint groups.
8. Prediction or explanation services execute.
9. Lambda logs operational metadata and returns a structured response.
10. Streamlit renders the result.

AI providers remain disabled in v0.4.

Analytical foundation

Attrition classification

RetainAI supports supervised employee-attrition analysis through reusable model pipelines and evaluation artifacts.

Representative model families include:

logistic regression
random forest
XGBoost

Survival analysis

Survival models add a time-to-event perspective that classification alone cannot provide.

They support questions such as:

How does retention probability change over time?
Which factors are associated with earlier attrition?
How should cohorts be compared across a time horizon?

Explainability

Explainability is a first-class product layer:

global feature importance
local employee-level drivers
SHAP artifacts
driver summaries
model cards
responsible-use notes

Experiment and artifact tracking

MLflow and versioned artifacts preserve:

parameters
metrics
model versions
explanation artifacts
reports
evaluation context

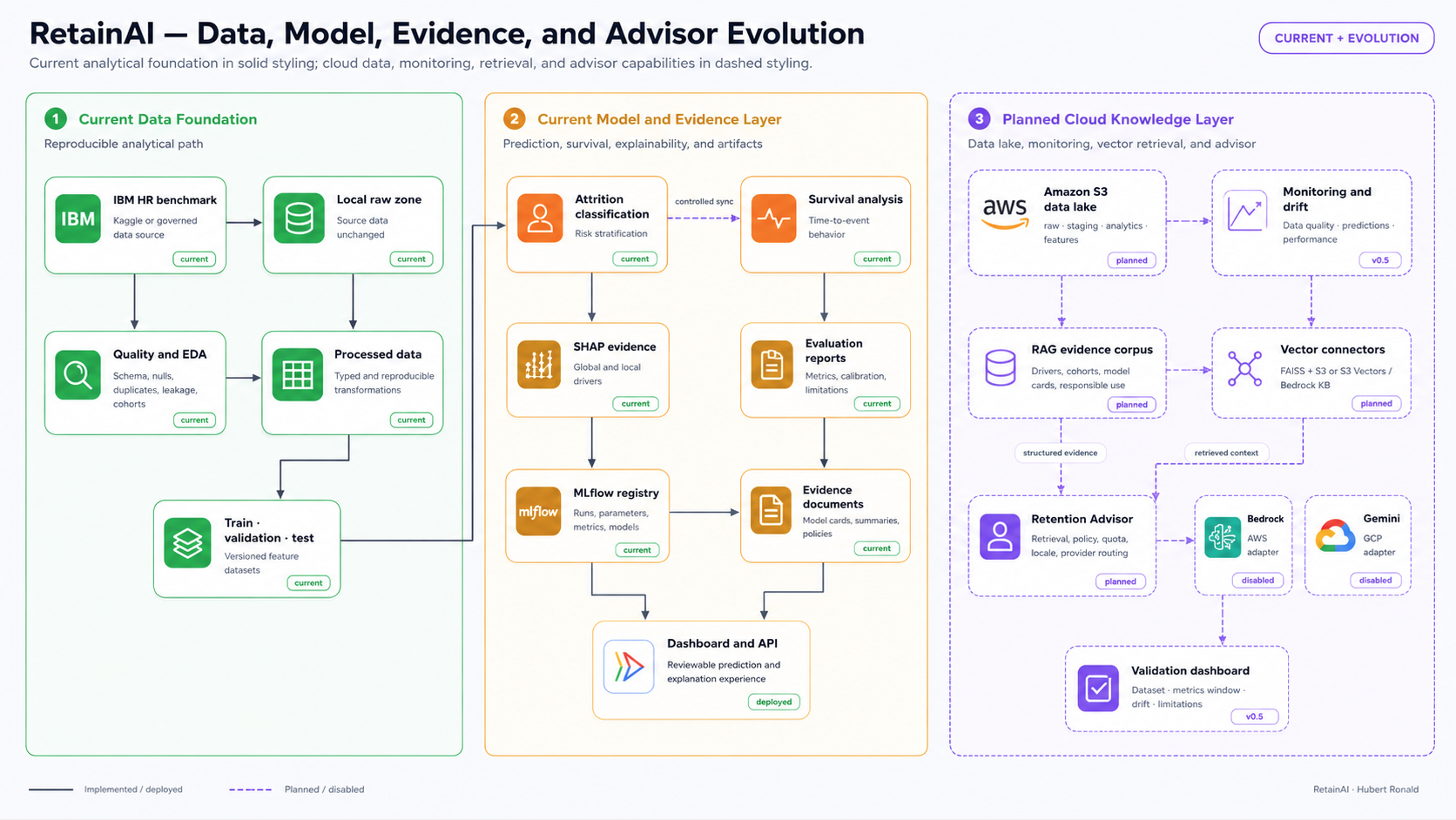

Data, model, evidence, and RAG evolution

This view combines the current analytical foundation with the planned evidence-retrieval and advisor path.

Editable source

Current foundation

Kaggle or governed HR data
local data zones
EDA and data-quality checks
processed and split datasets
classification and survival models
SHAP and evaluation artifacts
dashboard and API consumption

Planned evolution

S3 data lake contracts
model-evidence documents
FAISS + S3 connector
S3 Vectors or Bedrock Knowledge Base connector
provider-neutral Retention Advisor
Gemini and Bedrock adapters
monitoring and drift reports

Evidence before generation

Raw SHAP objects should not be sent directly to an LLM.

RetainAI should generate structured evidence documents from:

model cards
global driver summaries
local explanation payloads
survival summaries
validation reports
responsible-use policies

The advisor receives a bounded context pack derived from those documents.

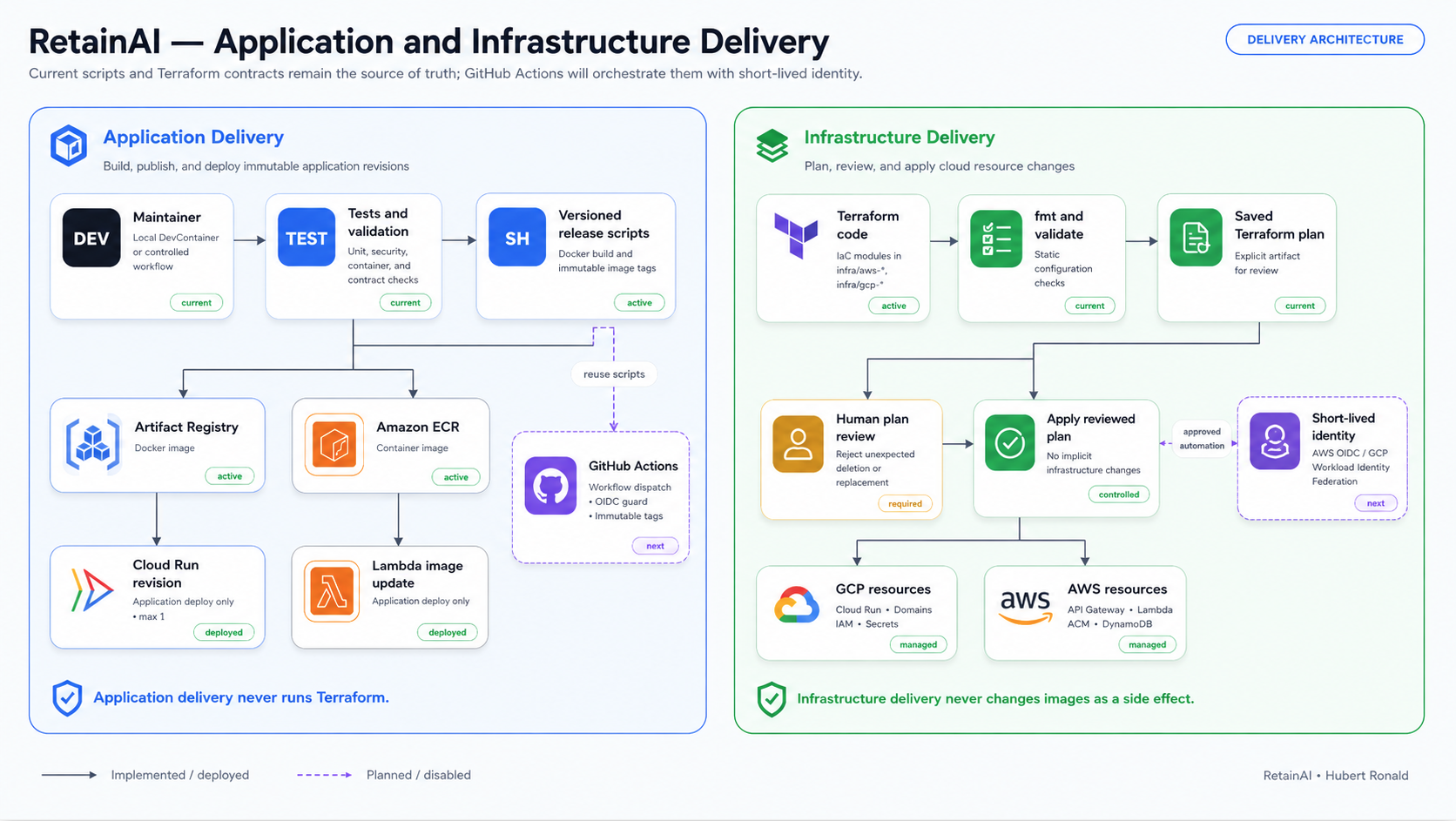

Delivery architecture

The delivery architecture separates application revisions from infrastructure changes.

Editable source

Current application delivery

local or controlled operator command
  ↓
Docker build
  ↓
Artifact Registry or ECR
  ↓
Cloud Run revision or Lambda image update

Dashboard delivery uses:

IMAGE_TAG="<immutable-tag>" \
  ./scripts/deploy_dashboard_cloud_run.sh

Current infrastructure delivery

terraform fmt
terraform validate
terraform plan
human review
terraform apply reviewed plan

Planned GitHub Actions evolution

The automation target should use:

workflow_dispatch
main-branch guard
AWS OIDC
GCP Workload Identity Federation
immutable image tags
separate application and infrastructure jobs
explicit deployment approval

The future workflow should reproduce the existing scripts and Terraform contracts rather than invent a parallel deployment path.

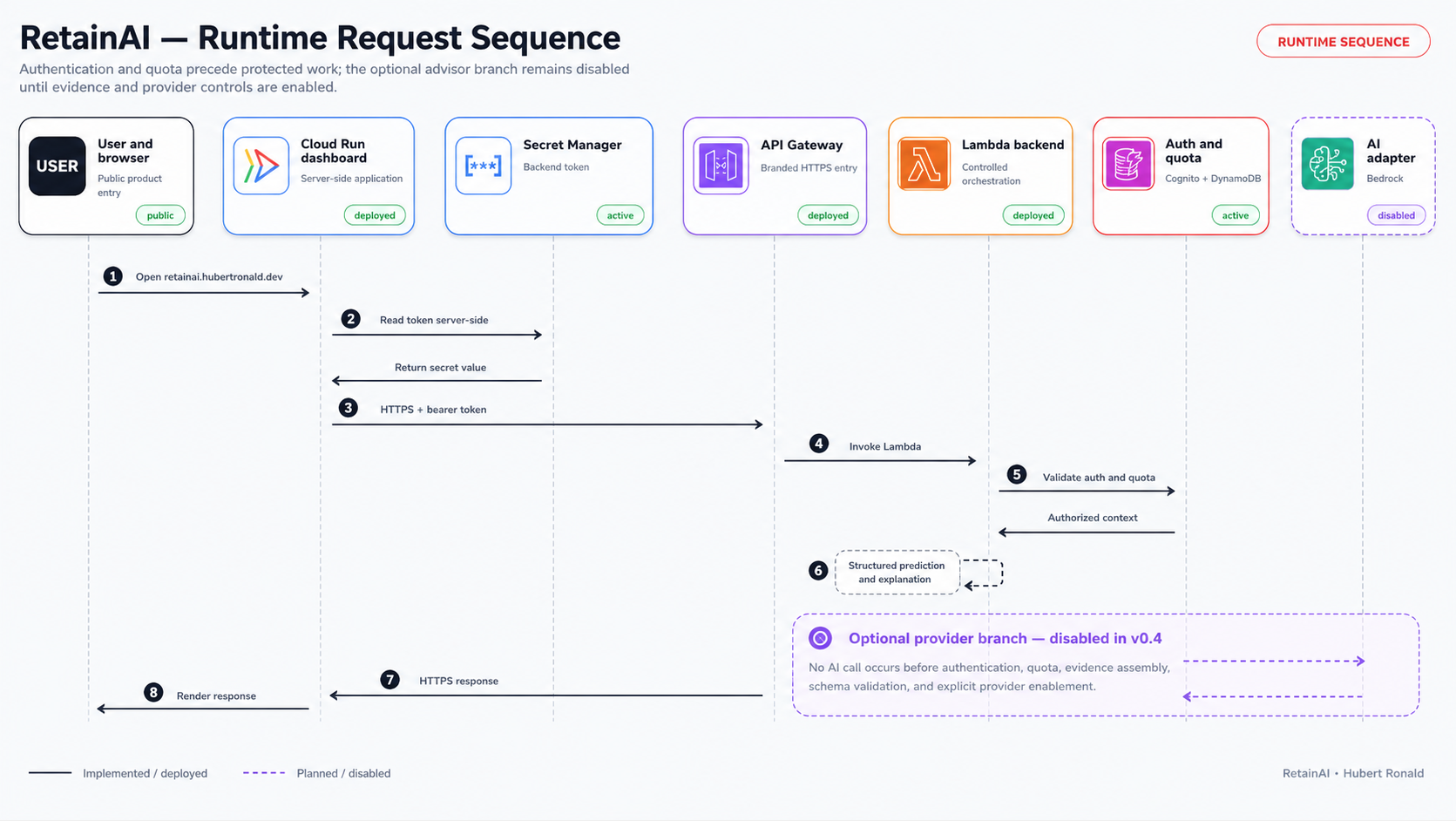

Runtime sequence

Editable source

The sequence explicitly separates:

public health
authenticated prediction
quota-controlled explanation
future AI advisor

The advisor branch is disabled by default and executes only after authentication, quota, evidence assembly, and provider selection.

Current and planned capabilities

Capability	Status at v0.4
Attrition classification	Implemented foundation
Survival analysis	Implemented foundation
SHAP explainability	Implemented foundation
MLflow tracking	Implemented foundation
Streamlit dashboard	Deployed
Branded dashboard domain	Deployed
API Gateway + Lambda backend	Deployed
Branded API domain	Deployed
Server-side bearer token	Deployed
DynamoDB quota	Deployed
Terraform AWS/GCP	Active
Decoupled dashboard delivery	Active
GitHub Actions cloud delivery	Next delivery milestone
Monitoring and drift	Planned for v0.5
English/Spanish localization	Planned for v0.6
Gemini adapter	Planned and disabled
Bedrock adapter	Planned and disabled
FAISS + S3 retrieval	Planned
S3 Vectors / Bedrock KB	Future managed option
Psychometric Intelligence	Research only, not committed

Security boundaries

The browser never receives the backend bearer token.
The browser never receives Gemini or Bedrock credentials.
Cloud Run does not call AI providers directly.
API Gateway and Lambda form the controlled backend boundary.
Authentication is evaluated before protected execution.
Quota is evaluated before AI-backed execution.
Provider output must be schema-validated and evidence-aware.
Sensitive employee data must be minimized or redacted.

Architectural principles and decisions

RetainAI is a decision-intelligence platform

RetainAI combines predictive modeling, survival analysis, explainability, experiment tracking, controlled API services, dashboard-driven decision support, and an evolving advisor layer.

The multicloud topology provides the runtime and delivery foundation for these capabilities, but it does not define the complete product scope.

Terraform is the active infrastructure-as-code standard

AWS and Google Cloud infrastructure is managed through Terraform modules located under:

infra/aws-terraform
infra/gcp-terraform

Earlier Pulumi experiments are part of the repository history but are not part of the active infrastructure architecture.

The dashboard uses direct Cloud Run domain mapping

The public dashboard is exposed through a direct Cloud Run domain mapping at:

retainai.hubertronald.dev

This approach provides managed HTTPS and an appropriate operational footprint for the current product scale without introducing an external Google Cloud load balancer.

The backend uses an API Gateway regional custom domain

The AWS backend is exposed through:

api.retainai.hubertronald.dev

The domain is implemented with API Gateway and AWS Certificate Manager. The current architecture does not require Route 53, CloudFront, or an AWS load balancer.

Application delivery and infrastructure delivery are independent

Application releases build and deploy immutable container images without applying Terraform.

Infrastructure changes follow a separate workflow based on formatting, validation, a saved Terraform plan, human review, and application of the reviewed plan.

This separation prevents routine application releases from modifying cloud resources and prevents infrastructure changes from replacing application images as a side effect.

AI providers are implementation adapters

Google Gemini and Amazon Bedrock are optional implementations of a common advisor-provider contract.

Authentication, quota enforcement, evidence assembly, policy controls, localization, logging, and response validation remain part of RetainAI's backend orchestration rather than provider-specific logic.

AI providers remain disabled by default.

Current and planned capabilities are documented separately

Architecture diagrams use solid styling for implemented or deployed components and dashed styling for planned, optional, or disabled components.

This convention applies to capabilities such as:

monitoring and drift detection
vector retrieval
RAG evidence services
Gemini and Bedrock integrations
GitHub Actions delivery
governed automated retraining

The visual distinction prevents roadmap components from being interpreted as part of the current production runtime.

Internationalization boundary

Internationalization is an architectural concern, not only a translation task.

User-facing copy should move to:

locales/en.json
locales/es.json

Backend explanations should prefer:

{
  "message_key": "advisor.risk.high",
  "variables": {
    "risk_score": 0.81
  },
  "evidence": []
}

The dashboard renders localized prose from stable keys. Business logic, evidence, and provider routing remain language-independent.
